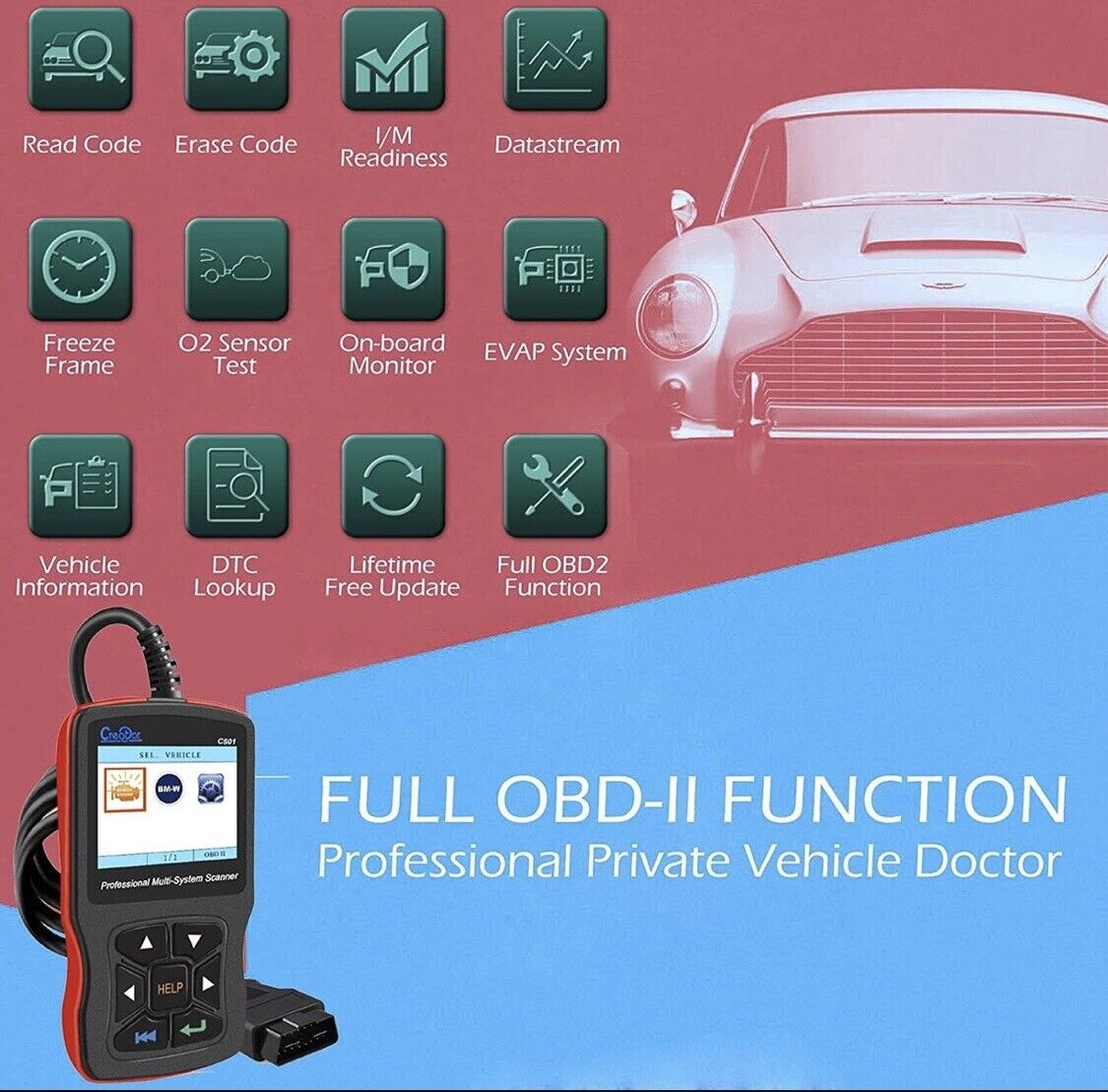

Creator C500 Features:
1. 2.8” color LCD display, 320 x 240 Pixel
2. Hand-held, easy to carry and operate
3. Support multiple vehicle to test including OBDII & EOBD, BM-W & Mini, Honda & Acura
4. Including all the functions of Creator C300, C310 and C330.
5. Update Online: www.szcreator.com
6. Multiple language available:
Language available for OBD: English, Spanish, Simplified Chinese, Traditional Chinese, Vietnames and German
Language available for BM-W brand: English, Traditional Chinese and German
Language available for Honda brand: English and Traditional Chinese
C500 Code Reader Software Supported:
1) OBDII & EOBD
2) BM-W & MINI
3) HONDA & ACURA

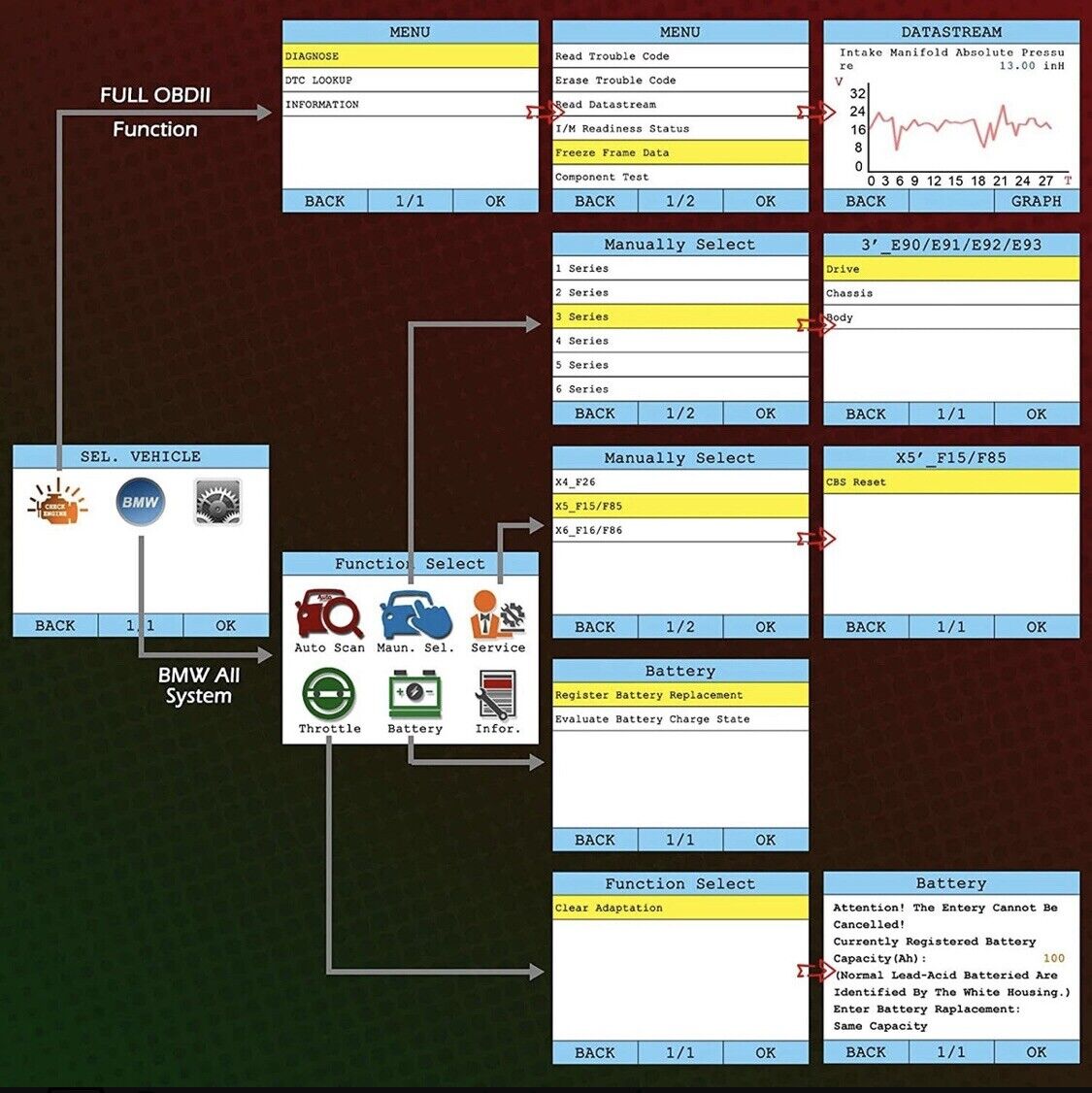

C500 Software Description:
1. OBDII & EOBD
● Works on all 2001 and later OBDII compliant PETROL European vehicles
● Works on all 2004 and later OBDII compliant DIESEL European vehicles
● Works on all 1996 and later OBDII compliant US and Asian vehicles
● Easily determines the cause of the “Check Engine Light ( MIL)”
● Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3 and U1) codes
● Turns off Check Engine Light (MIL), clears codes and resets monitors
● Displays DTC definitions on unit screen
● Views freeze frame data
● Identifies pending codes
● Reads live PCM datastream
● Graph displays live PCM datastream
● Read I/M Readiness Status
● Displays live O2 sensor test data
● Performs modules present test
● Retrieves vehicle information (VIN, CIN and CVN)
● Supports CAN (Controller Area Network) and all other current OBD-II protocols
2. BM-W & MINI software
Supports BM-W from 2001 to 2016
1 Series: 1'_E81/E81/E87/E88,1'_F20
3 Series: 3'/Z3_E36,3'_E46,3'_E90/E91/E92/E93,3_F30
5 Series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 Series: 6'_E63/E64,6'_F12/F13
7 Series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04
X Series: X3_E83,X5_E53,X5_70,X6_E71,X1_84,X3_F25
Z Series: 3'/Z3_E36,Z4_E85/E86,Z4_E89
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60
Include: Drive, Chassis and Body all system
Functions: read trouble codes, clear trouble codes, displays live data stream and graph display and vehicle version information. Clear adaptation, Engine oil reset
3. HONDA & ACURA software
Supports all of the HONDA and ACURA vehicles for OBDII sockets before
2015 Include models: ACCORD, ACTY, ACURA, AIRWAVE , ASCOT,CITY,CIVIC,CR-V,FIT, INSIGHT, JAZZ, ODYSSEY, etc.
Supports system: Engine, Auto transmission, ABS, SRS (air bag), Body, EPS, immobilizer etc.
Functions: read trouble codes, clear trouble codes, displays live data stream and graph display and vehicle version information.
C500 Package Includes:
1pc x C500 Machine
1pc x User's Manual
1pc x TF Card Reader
1pc x TF Card
